Cell Tester

Cell Tester
Cell Tester

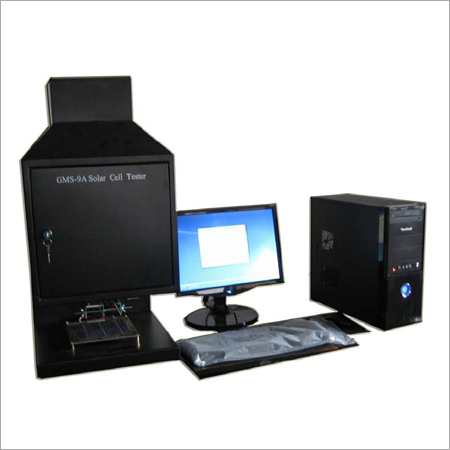

Product Code : GMS-9A
Product Description

Cell Tester- GMS 9AGMS 8B

With our rich industry experience, we are engaged in offering Cell Tester, which is manufactured from premium grade raw materials at par with international standards. The offered range is highly valued for its rigid construction, optimum performance, compact design, high strength and longer life. In order to ensure quality, this Cell Tester is stringently tested on various predefined parameters. The offered product is available in a variety of specifications and can be custom designed as per the client needs within stipulated time frame.

Technical Specifications

  • Input power: 220VAC+10%,5A,50Hz
  • Spectral irradiance distribution : IEC 60904-9,
  • Test items: ISC, Voc, Im, Vm, Pm, FF, Rs, Eff and I-V
  • Testing area: 16cmx16cm/20cmx20cm/25cmx25cm
  • Spectrum:AM 1.5
  • Simulator class(A,B,C): AAA
  • Non-uniformity of irradiance (IEC 60904-9): +2%
  • LTI: +1%
  • STI: +0.5%
  • Light pulse duration: 4ms~5ms
  • Lamp lifetime (average no. of flashes): 300,000
  • Range of light intensity: 200 - 1250W/ m2, Adjustable.
  • Voltage ranges: 0-0.8V, 0-24V, customized
  • Current ranges: 0-12A, customized
  • Data collection: 3ms~4ms
  • Dimension: 400mm(L) x 510mm (W)x 860mm(H)
