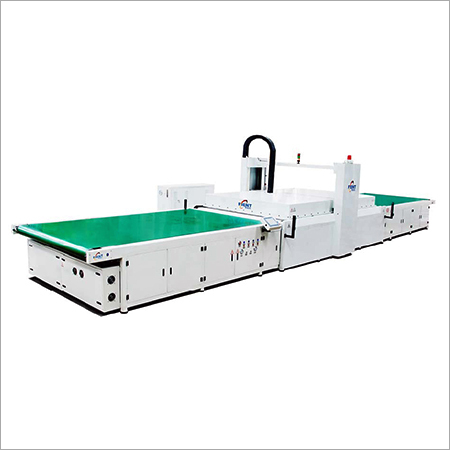

Fully Automatic Laminator 3600mmx2200mm

Fully Automatic Laminator 3600mmx2200mm
Fully Automatic Laminator 3600mmx2200mm
Product Code : TCAY-G3-9
Product Description

Fully automatic Laminator 3600mmx2200mm

Keeping in the mind various requirements of our clients, we are offering premium quality Fully Automatic Laminator. Manufactured utilizing high grade components and cutting edge technology, this machine is at par with international standards. Compact design, reliable performance, corrosion resistance, durable finish standards and reliability are some of the features of this Fully Automatic Laminator 3600mmx2200mm. This range is quality tested by our controllers on various parameters to ensure optimum at users' end.

Total Power

69KW

Power Supply

AC380V Triphase Five Wires

Heating Mode

Oil

Heating Temperature Control

Intelligent PLC Control

Laminating Time

2-4 Minutes

Environmental Temperature

0oC-50oC

Temperature Accuracy

+1oC

Temperature Uniformity

+3oC

Temperature Range

30oC-180oC

MaximumWorking Temperature

180oC

Pumping Speed

70 L/S

Air Supply

0.6-1.0MPa

Height of Opening

300 mm

Module Height

20 mm

Outstanding Features

Heating Mode

  • Oil heating. Special steel structured heating platen, protected by patent.
  • Temperature distributing uniformly during heating process, within 3 oC
  • Products fabricated from this process passed international standards.

Loading unloading Mode

Loaded by conveyor chain, controlled at the same time with setting system. Automatic cleaning system for conveyor and heating platen to keep the operation smoothly.

  • Loading, laminating and unloading happen simultaneously.
  • Improve the efficiency of operation with reliable quality.
  • There is place setting system for loading, laminating and unloading.
  • The whole process is controlled automatically.

Control Mode

The equipment is controlled by PLC and Standard touch screen industrially. Interface both in Chinese and English.

  • User-friendly with high efficiency.
  • Stable operation process and high accuracy.

Laminating Process

Laminating Process is composed to Three Phases with various speed. The laminating pressure is adjustable:

  • This technology leads international PV equipment field.
  • Orient is the only one in China to use this advanced technology in laminating process.
  • This technology improves the rate of finished modules.

Special Structure and Function

Equipment Structure

The whole equipment is composed of parts which are accurately treated with heat and high temperature to keep the equipment under normal demonstration with changing shapes or rusty.

  • Strong design for the whole equipment. To satisfy long time job under high temperature and high pressure.
  • The inside components are all from international top quality company to make sure its low replacement.
  • Special design to protect rubber sheet wrinkling.
  • Vertical lift lid driven by four hydraulic cylinders.
  • Siemens PLC ; Touch Screen From Taiwan Hi-tech; Fuji Buttons

Heating Platen Structure

Special structure heating platen, protected by patent.

  • Steel platen with long time heating treatment to protect it from changing shape during years of operation.
  • Up to 60mm thickness, with surface flat.
  • Channels inside the steel heating platen, improve the efficiency of heating, enabling the temperature homogenous during laminating cycle.
  • One cycle time is about 22 minutes including cooling time.

Intelligence Control

The unique control system in PV equipment field.

  • Automatic and comprehensive control system, analyse ability for data record.
  • Long distance control ability.
  • Concentrative control.
  • It is designed the intellectual double system on vacuum valve groups and temperature sensors control. When one system is working, the other one is used for preparation. If the working system is broken(eg. valve or senor is broken),the other system can change automatically without machine running stop.

Safety and Alarming System

Safe operation

  • Protection Lock: Installed with protection lock, the upper lid won't drop and hurt when meeting accident.
  • Protection System: The light will alarm with sound when the operator is not in the safe operation area.
  • Emergency Button: Equipped with Emergency Button. The laminator will cut off power supply and keep the upper lid in the same level.
  • Insurance System: When the lid opens fully, it is locked automatically to protect accident.
  • Emergency Lid Open System: When the power failed, the lid can be opened to put out of the laminate.
  • Alarming Systems: All kinds of alarming systems, Over temperature alarm; Oil lack alarm; Lower vacuum alarm; And other alarming systems.

Application

  • Used for laminating monocrytalline silicon and polycrystalline silicon module.
  • Be suitable for laminating amorphous silicon solar cell for glass.
