Solar Cell Tester

Solar Cell Tester
Solar Cell Tester
Product Code : GMS-8B
Product Description

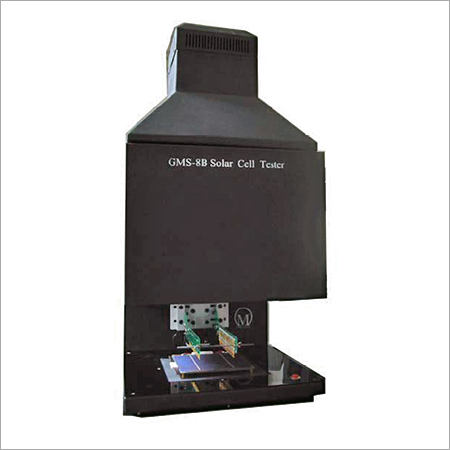

Solar Cell Tester

Owing to our rich industry experience, we provide our clients a high quality Solar Cell Tester. This is made using high grade components procured from reliable sources of the industry in compliance with international standards under the guidance of skilled professionals. Owing to optimum functionality, resistivity to adverse conditions, longer service life and high performance, this Solar Cell Tester is highly demanded in the market.

Solar Panel Assembly Line - Cell Tester :

  • Machine Type: Solar panel equipment
  • Input power: 220VAC+10%,5A,50Hz
  • Spectral irradiance distribution : IEC 60904-9,
  • Test items: ISC, Voc,Im,Vm,Pm,FF,Rs,Eff and I-V
  • Testing area: 200mm*200mm
  • Spectrum: AM 1.5 Class A
  • Non-uniformity of irradiance (IEC 60904-9): +%
  • LTI: +1%
  • STI: +0.5%
  • Light pulse duration: 10ms
  • Lamp lifetime (average no. of flashes): 1,000,000
  • Range of light intensity:   300 - 1200W/ m², Adjustable.
  • Voltage ranges: 0-12V
  • Current ranges: 0-0.8A
  • Data collection: 3ms
  • Dimension: 380mm*490mm*700mm
